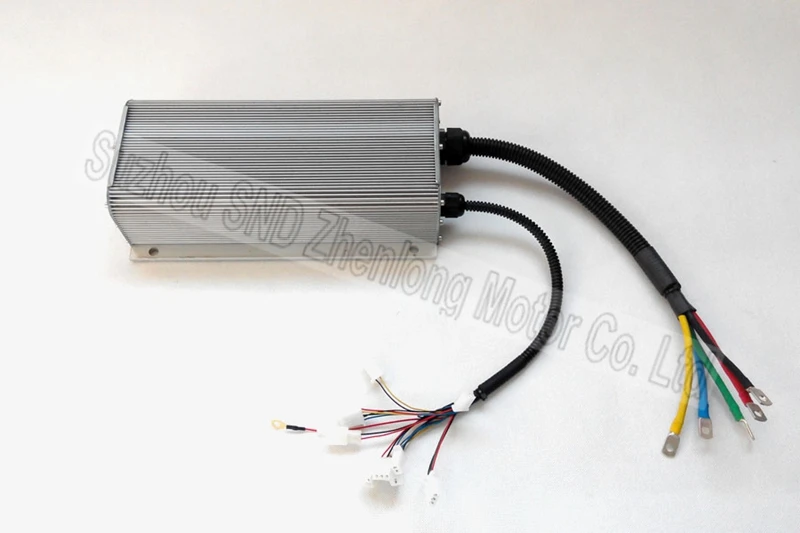

Top High voltage ebike diy controller 96V~156V 8000W customized/ e-scooter and small rc boat controller with IR4668mosfet G-K047 0

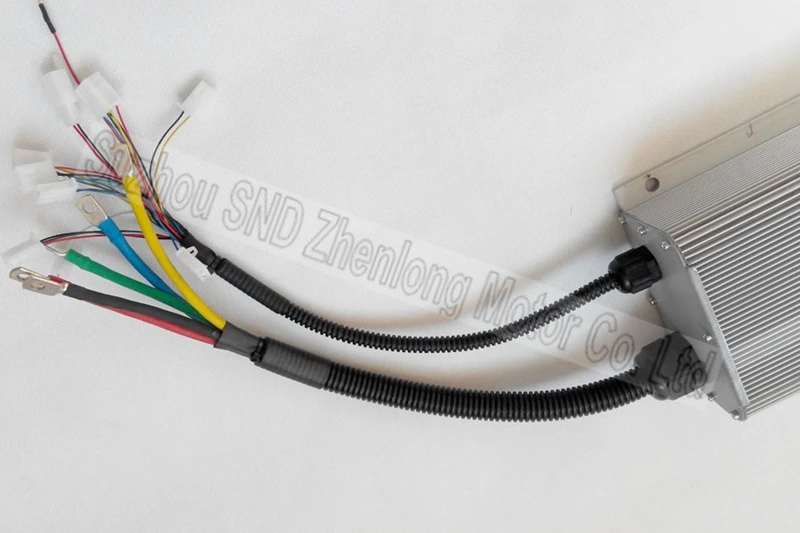

Top High voltage ebike diy controller 96V~156V 8000W customized/ e-scooter and small rc boat controller with IR4668mosfet G-K047 1

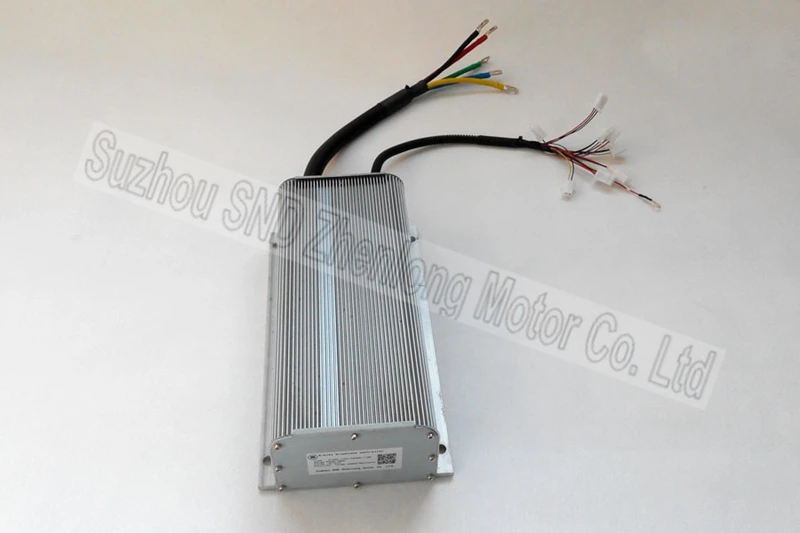

Excellent High voltage ebike diy controller 96V~156V 8000W customized/ e-scooter and small rc boat controller with IR4668mosfet G-K047 2

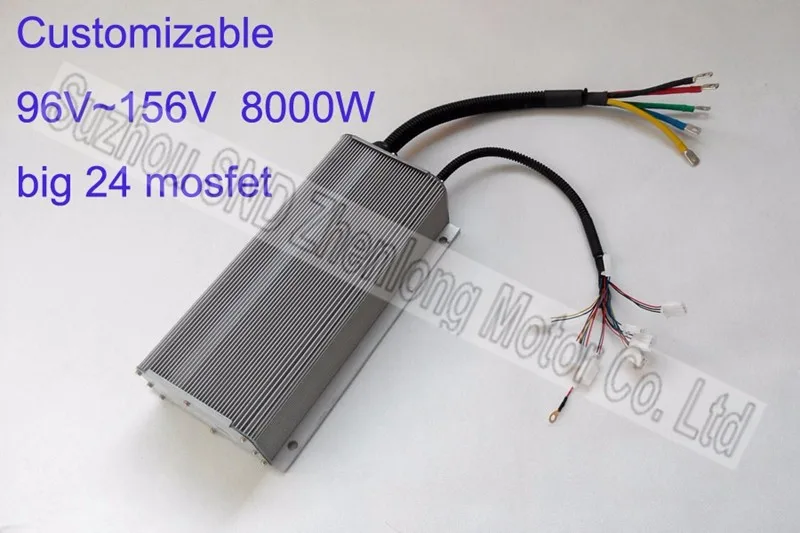

Excellent High voltage ebike diy controller 96V~156V 8000W customized/ e-scooter and small rc boat controller with IR4668mosfet G-K047 3

Type Controller

Brand Name ZLZLMOTOR

Operating Battery Voltage 96V~156V

Rated Power (W) 8000W

Mosfet NO. Big 24 mosfet

Limit current 100A

Phase degree 120S

Apply to Hall sensor motor only

Motor Type Brushless DC motor

Shell size 280mm*130mm*85mm

High voltage ebike diy controller 96V~156V 8000W customized/ e-scooter and small rc boat controller with IR4668mosfet G-K047 Specification: Operating BatteryVoltage: 96V~156V Limit current : 100A Rated Power : 8000W Phase degree : defacult120s(if you use a 60° motor,please let us know) Brake level : High level brake Three speed function : Yes, over speed120% / normal speed100% / low speed80% Anti-theft function : Yes Mosfet : Big24mosfet Suit for motor : 2000W~3000W motor Other function : Backward Size : 280mm*130mm*85mm Function: Storm start/Highlevel brake / Anti-theft /Backward/ Three speed / Twist throttle / Instrument/ Phase wire. Leadtime: within 6days after recieving the payment. FunctionNotice: 1/, This is a single mode controller, controller's default phase degree is 120s,if your motor's phase degress is 60splease let us know. 2/, This controller without selfstudy function, so need to match the phase and hall cables to motor manually. Total 36 connect ways. An instruction manual of how to adjust phase wire will be sent out along with controller. Shipping notice: 1/If you want a faster express, Pls feel free to contact us, we will adjust the shipping cost. 2/Parcel to Russia has specialexpress route with cheap shipping cost. Please contact us to realise the details when you placing an order. 3/A copy of instruction manualwill send out together with controller. New shell : Here remind that the actual good will not use the annular tubes as below photo. We use imported waterproof glue instead. Notice:The two poles must on their right way or the damage to the controller is destructive. Installation Method: Vehicle power off ==> Set up the motor ==> Respectively connect the 3 power wires , the 3 motor thickwires, five small Hallwires, the electric handle wire ==> power on,then slowly turn the electric handle, the motor will turn with very light voice, if the voice is not right,please do not turn the handle again, we need exchange the 3 motor thick wires or five small Hall wires. When the motor work normally, we can connected other function wires which we needed. Unwanted need wrap aside, finally fixed the controller to complete the installation. If any question, please feel free to contact us! Hope every customers will be satified with our products, thank you! Excellent High voltage ebike diy controller 96V~156V 8000W customized/ e-scooter and small rc boat controller with IR4668mosfet G-K047 0
